一、CZ型化工泵性能范圍（按設計點）
流量： Q 1.6-1500m3/h
揚程： H 5-125m
工作壓力： P 小于等于
1.6MPa
工作溫度： t -20 ～ +150 攝氏度
二、CZ型化工泵適用行業
氯堿、純堿工業；醫學、化肥、農藥；石油化工、化纖、造紙工業；染料工業；環保工程及水處理系統。

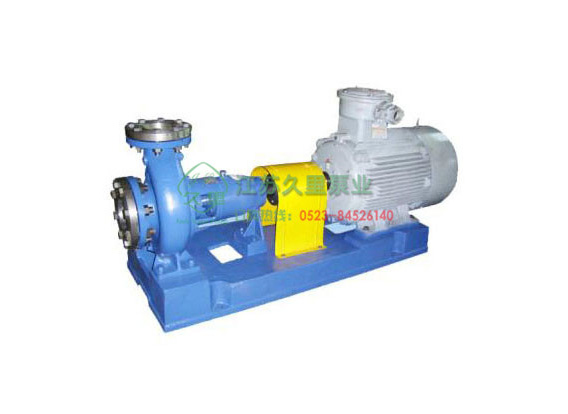

三、CZ型化工泵結構形式
臥式后開門結構，泵頭與電機采用聯軸器連接，安裝在底板上，葉輪為后開式，三只軸承，軸封采用外裝式機械密封，設有冷卻裝置，軸承體的
油位用油鏡觀察；結構緊湊合理。該泵在泵體上鑄有支腳，可承受來自管路的荷載并直接傳給基礎，這樣泵轉子不會因泵承受荷載而產生彎曲，
從而保證了承載和機械密封具有最佳的使用壽命。維修時不需將與泵體相連的管路打開，只要打開托架與泵體的螺栓，
將兩者分開就可維修葉輪
和機械密封，簡易方便。
泵的旋轉方向：從電機端朝泵看，順時針方向旋轉。
四、CZ型化工泵特點
該系列泵是我公司引進國外先進技術研制而成,可輸送含有固體顆粒，易結晶的介質，耐溫、耐腐、無堵塞。材質可根據具體工況選擇。
五、密封型式
機械密封或填料密封。
六、CZ化工流程泵性能參數
|
型號 |
泵額定轉速n=2900r/min |
泵額定轉速n=1450r/min |
||||||||
|
流量 |
揚程 |
汽蝕余量 |
效率 |
介質比重為1.35時 配用電機功率及型號 |
流量 |
揚程 |
汽蝕余量 |
效率 |
介質比重為1.35時 配用電機功率及型號 |
|
|
m3/h |
m |
m |
% |
m3/h |
m |
m |
% |
|||
|
CZ32-160 |
7.5 |
34.5 |
2 |
62 |
Y112M-2 4KW |
3.75 |
8.6 |
2 |
49 |
Y90S-4 1.1KW |
|
12.5 |
32 |
2 |
6.3 |
8 |
2 |
|||||
|
15 |
30 |
2.5 |
7.5 |
7.5 |
2.5 |
|||||
|
CZ32-200 |
7.5 |
51.8 |
2 |
51 |
Y132S2-2 7.5KW |
3.75 |
12.9 |
2 |
47 |
Y90L-4 1.5W |
|
12.5 |
50 |
2 |
6.3 |
12.5 |
2 |
|||||
|
15 |
48 |
2.5 |
7.5 |
12 |
2.5 |
|||||
|
CZ32-250 |
7.5 |
82 |
2 |
40 |
Y160M2-2 15KW |
3.75 |
20.5 |
2 |
37 |
Y100L1-4 2.2KW |
|
12.5 |
80 |
2 |
6.3 |
20 |
2 |
|||||
|
15 |
78.5 |
2.5 |
7.5 |
16.2 |
2.5 |
|||||
|
CZ40-160 |
15 |
34.2 |
2 |
63 |
Y132S2-2 7.5KW |
7.5 |
8.55 |
2 |
60 |
Y90L-4 1.5W |
|
25 |
32 |
2 |
12.5 |
8 |
2 |
|||||
|
30 |
30 |
2.5 |
15 |
7.5 |
2.5 |
|||||
|
CZ40-200 |
15 |
53.2 |
2 |
60 |
Y160M1-2 11KW |
7.5 |
13.3 |
2 |
57 |
Y100L1-4 2.2KW |
|
25 |
50 |
2 |
12.5 |
12.5 |
2 |
|||||
|
30 |
47.6 |
2.5 |
15 |
11.9 |
2.5 |
|||||
|
CZ40-250 |
15 |
81.2 |
2 |
50 |
Y180M-2 22KW |
7.5 |
20.3 |
2 |
48 |
Y100L2-4 3KW |
|
25 |
80 |
2 |
12.5 |
20 |
2 |
|||||
|
30 |
78.4 |
2.5 |
15 |
19.6 |
2.5 |
|||||
|
CZ40-315 |
15 |
126.8 |
2 |
50 |
Y200L2-2 37KW |
7.5 |
32.4 |
2 |
45 |
Y132S-4 5.5KW |
|
25 |
125 |
2 |
12.5 |
32 |
2 |
|||||
|
30 |
124 |
2.5 |
15 |
31.7 |
2.5 |
|||||
|
CZ50-160 |
30 |
36 |
2 |
73 |
Y160M1-2 11KW |
15 |
9 |
2 |
70 |
Y90L-4 1.5KW |
|
50 |
32 |
2.3 |
25 |
8 |
2.3 |
|||||
|
60 |
28.4 |
3.3 |
30 |
7.2 |
3.3 |
|||||
|
CZ50-200 |
30 |
55.2 |
2 |
72 |
Y160L-2 18.5KW |
15 |
13.5 |
2 |
70 |
Y100L1-4 2.2KW |
|
50 |
50 |
2.5 |
25 |
12.5 |
2 |
|||||
|
60 |
45.2 |
3.2 |
30 |
11.5 |
2.5 |
|||||
|
CZ50-250 |
30 |
84 |
2.5 |
64 |
Y200L2-2 37KW |
15 |
21 |
2 |
59 |
Y112M-4 4KW |
|
50 |
80 |
2.5 |
25 |
20 |
2 |
|||||
|
60 |
75 |
2.5 |
30 |
18.8 |
2.5 |
|||||
|
CZ50-315 |
30 |
128 |
2.5 |
60 |
Y280S-2 75KW |
15 |
32.5 |
2 |
58 |
Y132M-4 7.5KW |
|
50 |
125 |
2.5 |
25 |
32 |
2.5 |
|||||
|
60 |
123 |
3 |
30 |
31.5 |
3 |
|||||
|
CZ65-160 |
60 |
37 |
3.8 |
74 |
Y180M-2 22KW |
30 |
9.25 |
3 |
68 |
Y100L1-4 2.2KW |
|
100 |
32 |
4.3 |
50 |
8 |
3.4 |
|||||
|
120 |
28 |
5 |
60 |
7 |
3.7 |
|||||
|
CZ65-200 |
60 |
56 |
3.4 |
73 |
Y200L2-2 37KW |
30 |
14 |
2.5 |
73 |
Y112M-4 4KW |
|
100 |
50 |
3.9 |
50 |
12.5 |
2.5 |
|||||
|
120 |
44 |
5.2 |
60 |
11 |
3 |
|||||
|
CZ65-250 |
60 |
88 |
30 |
71 |
Y250M-2 5.5KW |
30 |
22 |
2.5 |
67 |
Y132S-4 5.5KW |
|
100 |
80 |
3.6 |
50 |
20 |
2.5 |
|||||
|
120 |
74 |
4.5 |
60 |
18.5 |
3 |
|||||
|
型號 |
泵額定轉速n=2900r/min |
泵額定轉速n=1450r/min |
||||||||
|
流量 |
揚程 |
汽蝕余量 |
效率 |
介質比重為1.35時 配用電機功率及型號 |
流量 |
揚程 |
汽蝕余量 |
效率 |
介質比重為1.35時 配用電機功率及型號 |
|
|
m3/h |
m |
m |
% |
m3/h |
m |
m |
% |
|||
|
CZ65-315 |
60 |
132 |
2.8 |
66 |
Y280S-2 75KW |
30 |
33.5 |
2 |
62 |
Y160M-4 11KW |
|
100 |
125 |
3.2 |
50 |
32 |
2 |
|||||
|
120 |
119 |
4.2 |
60 |
30.5 |
2.5 |
|||||
|
CZ80-160 |
130 |
16 |
4.7 |
76 |
Y180M-2 22KW |
65 |
4 |
2.5 |
70 |
Y112M-4 4KW |
|
150 |
22 |
5.3 |
70 |
5 |
2.8 |
|||||
|
160 |
26 |
5.8 |
75 |
8 |
3.5 |
|||||
|
CZ80-200 |
110 |
26 |
4.5 |
79 |
Y225M-2 nbsp; 45KW |
65 |
9 |
2.5 |
73 |
Y160M-4 11KW |
|
130 |
26 |
5 |
75 |
11 |
2.9 |
|||||
|
150 |
38 |
5.8 |
80 |
12 |
3.6 |
|||||
|
CZ80-250 |
130 |
47 |
3.7 |
80 |
Y280M-2 90KW |
70 |
11 |
2 |
78 |
Y160L-4 15KW |
|
150 |
55 |
4.5 |
85 |
17 |
2.3 |
|||||
|
180 |
75 |
5.5 |
90 |
19 |
3 |
|||||
|
CZ80-315 |
150 |
75 |
4 |
76.5 |
Y315M1-2 132KW |
70 |
18 |
2.5 |
72 |
Y180M-4 18.5KW |
|
160 |
100 |
4.5 |
85 |
25 |
2.5 |
|||||
|
200 |
130 |
5 |
100 |
32 |
3 |
|||||
|
CZ80-400 |
|
|
|
|
|
75 |
30 |
2.5 |
63 |
Y225S-4 37KW |
|
|
|
|
90 |
40 |
2.5 |
|||||
|
|
|
|
100 |
50 |
3 |
|||||
|
CZ100-200 |
150 |
61 |
4.5 |
81 |
Y250M-2 55KW |
60 |
15.3 |
2.5 |
80 |
Y132M-4 7.5KW |
|
200 |
50 |
5 |
100 |
12.5 |
2.9 |
|||||
|
240 |
41 |
5.8 |
120 |
10.3 |
3.6 |
|||||
|
CZ100-250 |
120 |
90 |
3.7 |
81.5 |
Y280M-2 90KW |
60 |
22.5 |
2 |
75 |
Y160M-4 11KW |
|
200 |
80 |
4.5 |
100 |
20 |
2.3 |
|||||
|
240 |
73 |
5.5 |
120 |
18.3 |
3 |
|||||
|
CZ100-315 |
120 |
132.5 |
4 |
75.5 |
Y315M1-2 132KW |
60 |
33.5 |
2.5 |
72 |
Y180M-4 18.5KW |
|
200 |
125 |
4.5 |
100 |
32 |
2.5 |
|||||
|
240 |
120 |
5 |
120 |
30.5 |
3 |
|||||
|
CZ100-400 |
|
|
|
|
|
60 |
52 |
2.5 |
70 |
Y225S-4 37KW |
|
|
|
|
100 |
50 |
2.5 |
|||||
|
|
|
|
120 |
58.5 |
3 |
|||||
|
CZ125-250 |
|
|
|
|
|
120 |
23 |
2.5 |
84 |
Y180L-4 22KW |
|
|
|
|
200 |
20 |
2.8 |
|||||
|
|
|
|
240 |
18 |
3 |
|||||
|
CZ125-315 |
|
|
|
|
|
120 |
35.6 |
3 |
79 |
Y225S-4 37KW |
|
|
|
|
200 |
32 |
3.5 |
|||||
|
|
|
|
240 |
29.4 |
4 |
|||||
|
CZ125-400 |
|
|
|
|
|
120 |
55.8 |
3 |
74.5 |
Y280S-4S 75KW |
|
|
|
|
200 |
50 |
3.5 |
|||||
|
|
|
|
240 |
47 |
4 |
|||||
|
CZ150-250 |
|
|
|
|
|
240 |
23 |
3 |
85 |
Y225M-4 45KW |
|
|
|
|
400 |
20 |
3.5 |
|||||
|
|
|
|
460 |
18 |
4 |
|||||
|
泵型號 |
泵額定轉速n=2900r/min |
泵額定轉速n=1450r/min |
||||||||
|
流量 |
揚程 |
汽蝕余量 |
效率 |
介質比重為1.35時 配用電機功率及型號 |
流量 |
揚程 |
汽蝕余量 |
效率 |
介質比重為1.35 時配用電機功率及型號 |
|
|
m3/h |
m |
m |
% |
m3/h |
m |
m |
% |
|||
|
CZ150-315 |
|
|
|
|
|
240 |
35.6 |
3 |
82.5 |
Y280S-4 75KW |
|
|
|
|
400 |
32 |
3.5 |
|||||
|
|
|
|
460 |
29.4 |
4 |
|||||
|
CZ150-400 |
|
|
|
|
|
240 |
55.8 |
3 |
80 |
Y315S-4 110KW |
|
|
|
|
400 |
50 |
3.5 |
|||||
|
|
|
|
460 |
47 |
4 |
|||||
|
CZ150-500 |
|
|
|
|
|
340 |
50 |
3.5 |
78 |
Y315M2-4 160KW |
|
|
|
|
360 |
65 |
4 |
|||||
|
|
|
|
400 |
70 |
4.3 |
|||||
|
CZ200-250 |
|
|
|
|
|
500 |
10 |
3.5 |
85 |
Y225S-4 37KW |
|
|
|
|
540 |
11 |
4.2 |
|||||
|
|
|
|
600 |
12 |
4.5 |
|||||
|
CZ200-315 |
|
|
|
|
|
500 |
13 |
4.5 |
83.5 |
Y280S-4S 75KW |
|
|
|
|
600 |
20 |
4.5 |
|||||
|
|
|
|
650 |
24 |
5 |
|||||
|
CZ200-400 |
|
|
|
|
|
500 |
40 |
4.5 |
84 |
Y315M2-4 18.5KW |
|
|
|
|
550 |
45 |
4.8 |
|||||
|
|
|
|
650 |
52 |
5 |
|||||
|
CZ200-500 |
|
|
|
|
|
450 |
40 |
4.5 |
81.5 |
|
|
|
|
|
550 |
55 |
4.8 |
|||||
|
|
|
|
650 |
65 |
5 |
|||||
|
CZ250-315 |
|
|
|
|
|
800 |
16 |
4.5 |
86 |
|
|
|
|
|
900 |
20 |
5 |
|||||
|
|
|
|
950 |
22 |
5.5 |
|||||
|
CZ250-400 |
|
|
|
|
|
800 |
24 |
4.9 |
83 |
|
|
|
|
|
900 |
38 |
5 |
|||||
|
|
|
|
1000 |
44 |
5.5 |
|||||
|
CZ250-500 |
|
|
|
|
|
850 |
45 |
5.5 |
85 |
|
|
|
|
|
1000 |
55 |
5.5 |
|||||
|
|
|
|
1200 |
80 |
6 |
|||||
|
CZ300-400 |
|
|
|
|
|
1300 |
20 |
5.5 |
87 |
|
|
|
|
|
1400 |
30 |
5.5 |
|||||
|
|
|
|
1500 |
40 |
6 |
|||||
|
CZ300-500 |
|
|
|
|
|
1100 |
40 |
5.5 |
83.5 |
|
|
|
|
|
1300 |
50 |
5.5 |
|||||
|
|
|
|
1500 |
60 |
6 |
|||||
